產品導航
首頁 >> 產品中心 >> 微芯片工具 >> 玻片組裝多孔板套裝（ProPlate?Multi-Array Slide System）

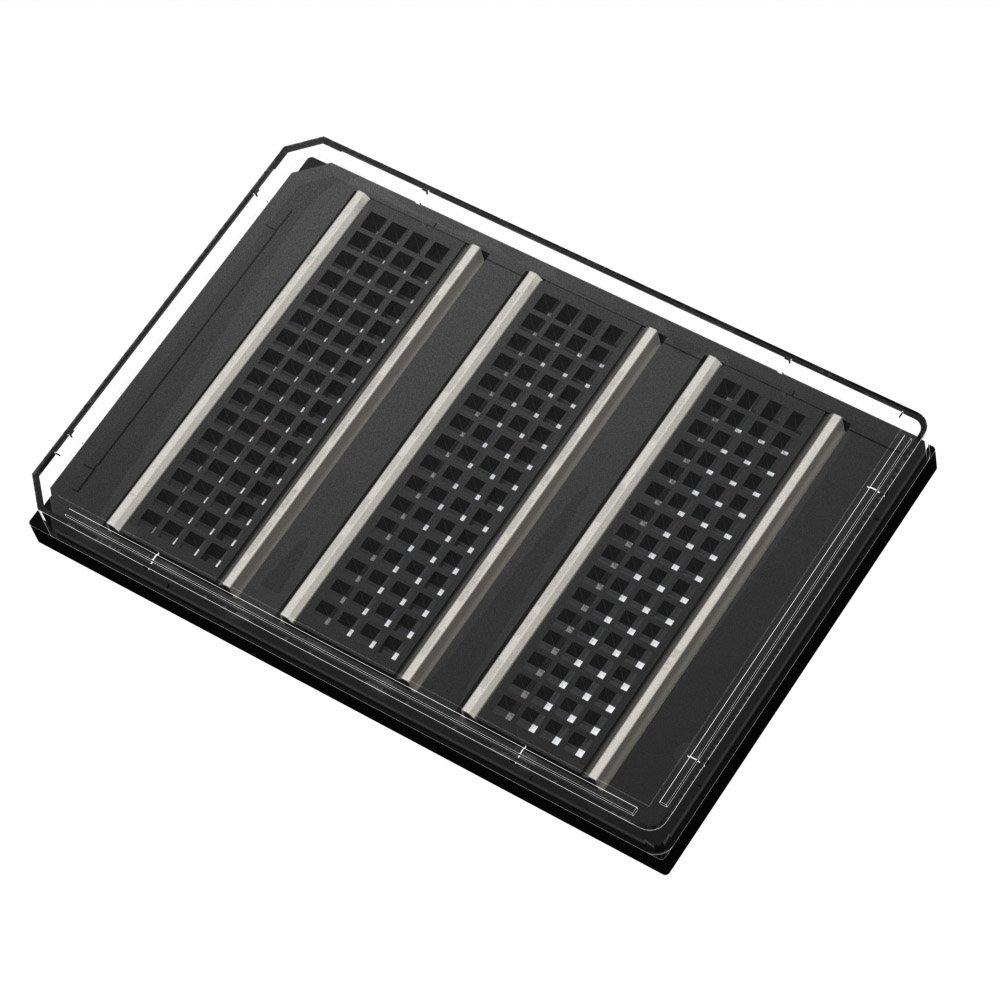

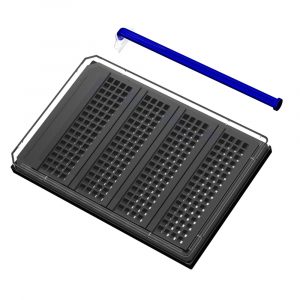

玻片組裝多孔板套裝（ProPlate?Multi-Array Slide System）

套裝包含下列配件：

l 4個玻片艙slide module：玻片艙由兩部分組成，molded upper structure（柔性塑料件）和silicone gasket（硅膠密封墊）

l  8個塑料固定彈性?shī)Asnap clip：注意：彈性?shī)A有兩種，一種mold Delrin snap clips（塑料彈性?shī)A），一種Stainless Steel Spring Clips（不銹鋼彈性?shī)A），如果使用不銹鋼彈性?shī)A，標準盤僅可以放置3個玻片艙。

l  1個標準盤和配套蓋子tray and cover：盤大小81.7mm width x 123.7mm length

l 10個密封條seal strips

l  1個密封推拉棒SealStrip applicator



注意：本套裝不包含載玻片！使用本套裝需要自購不帶漆邊的載玻片！



套裝產品系列：

貨號

產品名稱

規格

246881

1 Well ProPlate Tray set，3 - 16.5 x 70 mm，1 Well module, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

246882

2 Well ProPlate Tray set，3 – 16.5 x 34 mm, 2 Well Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

246883

3 Well ProPlate Tray set，3 – 18 x 20 mm, 3 Well Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

246884

4 Well ProPlate Tray set，3 – 16 x 16 mm, 4 Well Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

246888

8 Well ProPlate Tray set，3 – 7 x 16 mm, 8 Well Slide Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

246880

16 Well ProPlate Tray set，3 – 6 mm Diameter, 16 Well Slide Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

246890

16 Well ProPlate Tray set，3 – 7 x 7 mm, 16 Well, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

249865

64 Well ProPlate Tray set，3 – 3.5 x 3.5 mm, 64 Well Slide Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

247881

1 Well ProPlate Tray set，4 – 16.5 x 70 mm Well Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

247882

2 Well ProPlate Tray set，4 – 16.5 x 34 mm, 2 Well Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

247883

3 Well ProPlate Tray set，4 – 18 x 20 mm, 3 Well Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

247884

4 Well ProPlate Tray set，4 – 16 x 16 mm, 4 Well Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

247888

8 Well ProPlate Tray set，4 – 7 x 16 mm, 8 Well Slide Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

247880

16 Well ProPlate Tray set，4 – 6 mm Diameter, 16 Well Slide Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

204860

16 Well ProPlate Tray set，4 – 7 x 7 mm, 16 Well Slide Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

247865

64 Well ProPlate Tray set，4 – 3.5 x 3.5 mm, 64 Well Slide Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator

1套

套裝中的所有部件也可以單獨購買，例如玻片艙（module或者chamber），硅膠密封墊，密封條，夾子等等。

1.玻片艙產品系列（ProPlate™slide module）：

貨號

產品名稱

規格

246851

1 well ProPlate™slide module / 16.5mm X 70mm, WITHOUT CLIPS

10個/包

246852

2 well ProPlate™slide module only / 16.5mm X 34mm, WITHOUT CLIPS

10個/包

246853

3 well ProPlate™slide module only / 18mm X 20mm,  WITHOUT CLIPS

10個/包

246854

4 well ProPlate™slide module only / 16mm X 16mm, WITHOUT CLIPS

10個/包

246858

8 well ProPlate™slide module only / 7mm X 16mm, WITHOUT CLIPS

10個/包

246850

16 round well ProPlate™slide module only / 6mm DIA, WITHOUT CLIPS

10個/包

206862

16 well ProPlate™slide module only / 7mm X 7mm, WITHOUT CLIPS

10個/包

246855

64 well ProPlate™slide module only / 3.5mm X 3.5mm, WITHOUT CLIPS

10個/包

246861

1 well ProPlate™slide module / 16.5mm X 70mm, DELRIN SNAP CLIPS

2個/包

246862

2 well ProPlate™slide module / 16.5mm X 34mm, DELRIN SNAP CLIPS

2個/包

246863

3 well ProPlate™slide module / 18mm X 20mm, DELRIN SNAP CLIPS

2個/包

246864

4 well ProPlate™slide module / 16mmX 16mm, DELIRN SNAP CLIPS

2個/包

246868

8 well ProPlate™slide module / 7mmX 16mm, DELRIN SNAP CLIPS

2個/包

246860

16 round well ProPlate™slide module / 6mm DIA, DELRIN SNAP CLIPS

2個/包

204862

16 well ProPlate™slide module / 7mmX 7mm, DELRIN SNAP CLIPS

2個/包

246865

64 well ProPlate™slide module / 3.5mm X 3.5mm, DELRIN SNAP CLIPS

2個/包

248861

1 well ProPlate™slide module / 16.5mm X 70mm, STAINLESS STEEL SNAP CLIPS

2個/包

248862

2 well ProPlate™slide module / 16.5mm X 34mm, STAINLESS STEEL SNAP CLIPS

2個/包

248863

3 well ProPlate™slide module / 18mm X 20mm, STAINLESS STEEL SNAP CLIPS

2個/包

248864

4 well ProPlate™slide module / 16mmX 16mm, STAINLESS STEEL SNAP CLIPS

2個/包

248868

8 well ProPlate™slide module / 7mmX 16mm, STAINLESS STEEL SNAP CLIPS

2個/包

248860

16 round well ProPlate™slide module / 6mm DIA, STAINLESS STEEL SNAP CLIPS

2個/包

244862

16 well ProPlate™slide module / 7mmX 7mm, STAINLESS STEEL SNAP CLIPS

2個/包

248865

64 well ProPlate™slide module / 3.5mm X 3.5mm, STAINLESS STEEL SNAP CLIPS

2個/包





2.硅膠密封墊（silicone gasket only）系列：

貨號

產品名稱

孔數

孔大小

規格

246871

silicone gasket only

1 Well

16.5 x 70 mm

10個/包

246875

silicone gasket only

2 Well

16.5 x 24 mm

10個/包

246873

silicone gasket only

3 Well

16 x 20 mm

10個/包

246874

silicone gasket only

4 Well

16 x 16 mm

10個/包

246878

silicone gasket only

8 Well

7 x 16 mm

10個/包

246877

silicone gasket only

16 Well

6 mm Diameter

10個/包

205005

silicone gasket only

16 Well

7 x 7 mm

10個/包

246875

silicone gasket only

64 Well

3.5 x 3.5 mm

10個/包



3.其它配件(密封條、推拉棒)：

貨號

產品描述

規格

204874

Seal Strips (50) and Seal Strip Applicator



50/包

204830

ProPlate Delrin, Non-Numbered Snap Clips

20/包

204838

ProPlate Stainless Steel  Spring Clips

20/包

204870

ProPlate Tray and Cover for Snap Clip Modules Holds 4 Slide Modules

個

246870

ProPlate Tray and Cover for Spring Clip Modules Holds 3 Slide Modules

個
